The Production and Application of Casting Wheel Grinder

Publish Time: 06/22 2021 Author: Site Editor Visit: 10540

With the changes in the international and domestic economic situations, market competition has become more intense, and various customers have put forward clear standards for the appearance of castings, and customers have higher and higher requirements for the appearance of castings.

At present, the common problems faced by the foundry industry are the difficulty in recruiting workers and the sharp increase in labor costs, which has brought great pressure to the company's production and operation.

At the same time, due to the relatively backward technology and equipment of shovel grinding, it can only rely on increasing the number of personnel to increase production. The increase in personnel, on the one hand, has led to a tight work site, on the other hand, it has brought great pressure on the safety management of the factory. The use of advanced technology or equipment has become a requirement for current production development.

At present, the main tools used for shovel grinding operations are: electric 180 angular grinder, pneumatic S150 parallel grinder, pneumatic S60 parallel grinder, pneumatic SJ125 angular grinder, etc. In recent years, with the emergence of high-frequency grinders, its no-load and load speeds have been greatly improved compared with current pneumatic equipment. Research on the application of high-frequency grinders in relief grinding of castings will promote the improvement of the efficiency of relief grinding operations in the foundry industry. As well as reducing labor costs are of great significance.

The Production and Application of Casting Wheel Grinder

1. Features of high frequency grinder

In electrical engineering, more than 10kHz is called high frequency. However, for power tools, all frequencies higher than the standard grid frequency (50/60Hz) are defined as high frequency. Nowadays, the main frequency used by high-frequency power tools is 300Hz.

Compared with ordinary frequency electric tools and pneumatic tools, the main features of high frequency grinders are as follows:

(1) The speed drop is small during high-load operation (only 3%~15%), and keep working at a constant speed. It is more efficient than ordinary frequency tools and pneumatic tools (the speed is reduced by 30% to 40%, or even more), so the high frequency machine can improve the grinding efficiency, increase the output, and lower the loss of the diamond grinding wheel. Figure 2 shows the speed comparison of the high-frequency machine and the pneumatic and ordinary motors.
(2) The structure is simple, the cage rotor has no copper head and no carbon brush design, and has a long service life (up to 10 years). The use of pneumatic tools must not only maintain the tool itself, but also maintain the entire compression system, control system, and connection system. A rated output of 1kW requires a compressor loss of 8kW, which has high noise and vibration during use. With ordinary electric grinders, wearing parts such as carbon brushes and rotors need to be replaced once a month, and the life of the whole machine is about three months.
(3) Fully enclosed motor and surface cooling system, dust cannot enter the motor, suitable for operation in harsh working environments.
(4) The power is strong, the best power-to-weight ratio, and can work continuously for 24 hours; the frequency converter is sturdy and durable, the service life is as long as 10-15 years, and basically does not need any maintenance.

2. Research and application of high frequency grinder

The speed of the high-frequency 180 machine under load is reduced to 134r/min, and the speed reduction ratio is only 1.57%, while the speed of the ordinary air-driven 180 machine is reduced by 1000r/min under load, and the speed reduction ratio is 13.88%. Compare the efficiency ratio of the two under load conditions: 8386/6200=1.35, it can be seen that the efficiency of the high-frequency 180 machine is 1.35 times that of the ordinary pneumatic grinder; the same method, the efficiency of the high-frequency 60 machine is tested for the ordinary wind machine 1.93 times.

In order to further verify the effect, and carry out the polishing test of the comparison sample, by measuring the polishing time of the same block, the effect analysis is carried out: the high-frequency 180 machine takes 177s, and the pneumatic 180 machine takes 286s. The efficiency comparison between the two: 177=1.61, and greater than 1.35 in the previous test, which indicates that the amount of grinding per revolution per unit time of the high-frequency machine under load is greater than that of the ordinary pneumatic grinder. At the same time, the high-frequency machine has a very high speed. (Under no-load conditions, the high-frequency 180 machine is 1.18 times that of the ordinary 180 machine, and the high-frequency 60 machine is 1.45 times that of the ordinary 60 machine), so the high-frequency machine has higher efficiency.

3. The effect of using high frequency grinder

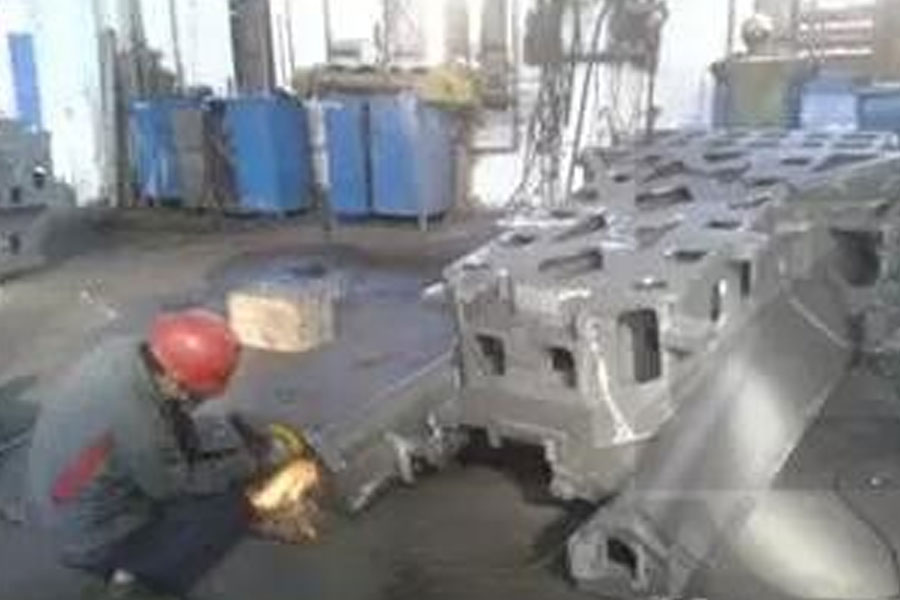

After the application of the high-frequency grinder, the subsequent product cleaning speed has been greatly improved. Figure 4 is a machine bed produced for a user, with a weight of 5060kg and a size of 2485mm×1752mm×1177mm. The cleaning cycle is approximately determined by the use of a pneumatic grinder. 27h is shortened to about 17h cleaned by a high-frequency grinder, the cleaning time is reduced by 37%, and the cleaning efficiency is significantly improved.

Compared with pneumatic tools, the use of high-frequency machines to polish castings reduces the average cleaning time by about 30%, significantly shortens the cleaning cycle, saves human resources, and promotes the progress of production.
