Transmission Case Die Casting Automation Case Studies

Publish Time: Author: Site Editor Visit: 1677

Transmission case die casting automation case:

The robot will first scoop a spoonful of aluminum alloy stock solution, then pour the raw materials into the die-casting machine, and then wait for the die-casting machine to complete the die-casting. The robot will take out the gearbox housing from the die-casting machine, and then perform the slag removal package processing. After the cleaning is completed, The gearbox housing will be placed in the water tank for cooling. After completion, it will be placed on the transport belt and sent to the designated location for reception. If an enterprise uses die-casting automation robots, it can increase the efficiency of die-casting, improve the quality of die-casting parts, and effectively reduce enterprise costs and increase profits. (See the legend for details)

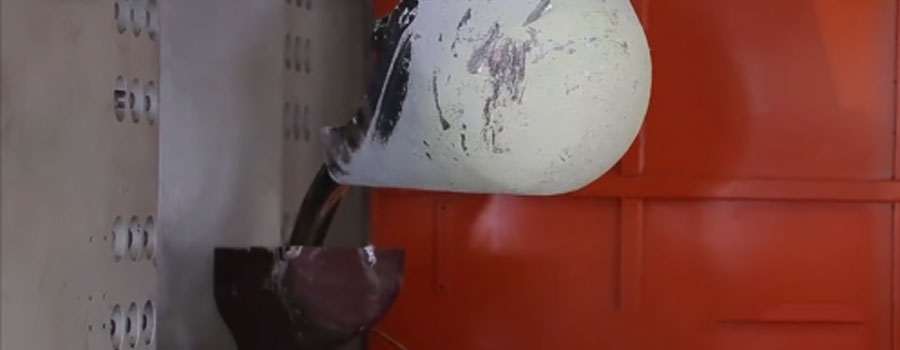

Automated process of gearbox housing die casting 1

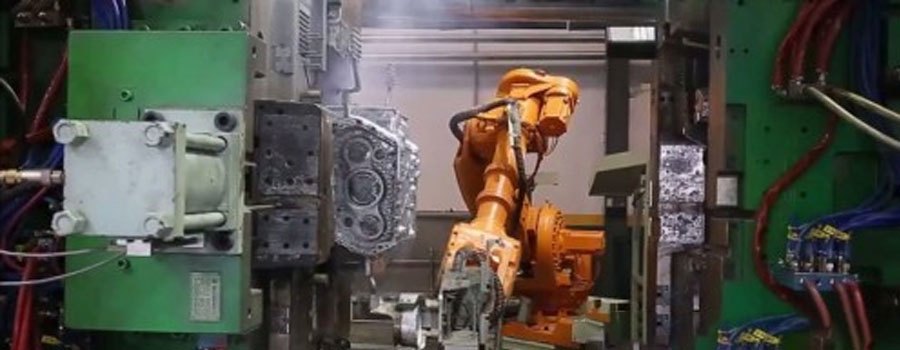

Automated process of gearbox housing die casting 2

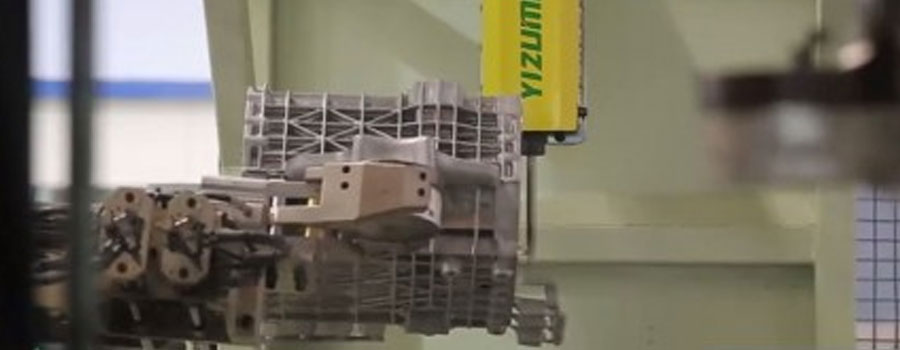

Automated process of gearbox housing die casting3

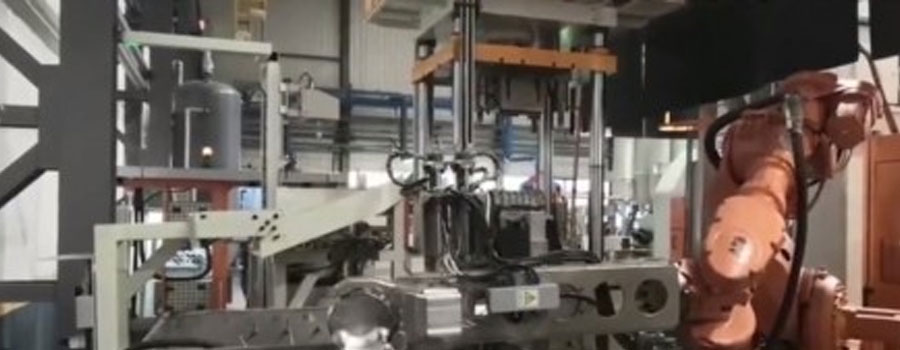

Automated process of gearbox housing die casting 4

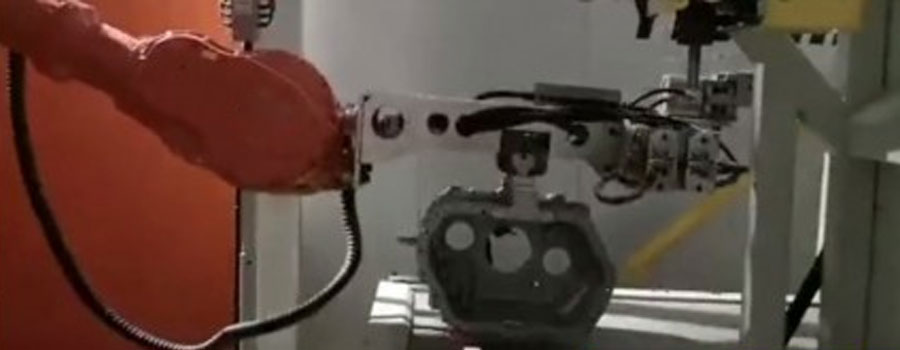

Automated process of gearbox housing die casting 5

Minghe Casting Company adopts a robot automation system, which can realize a one-stop operation of processes such as deslagging, dewatering, marking, cooling, punching, and palletizing with the robot as the center, and has achieved a major breakthrough in the process of automation equipment.
